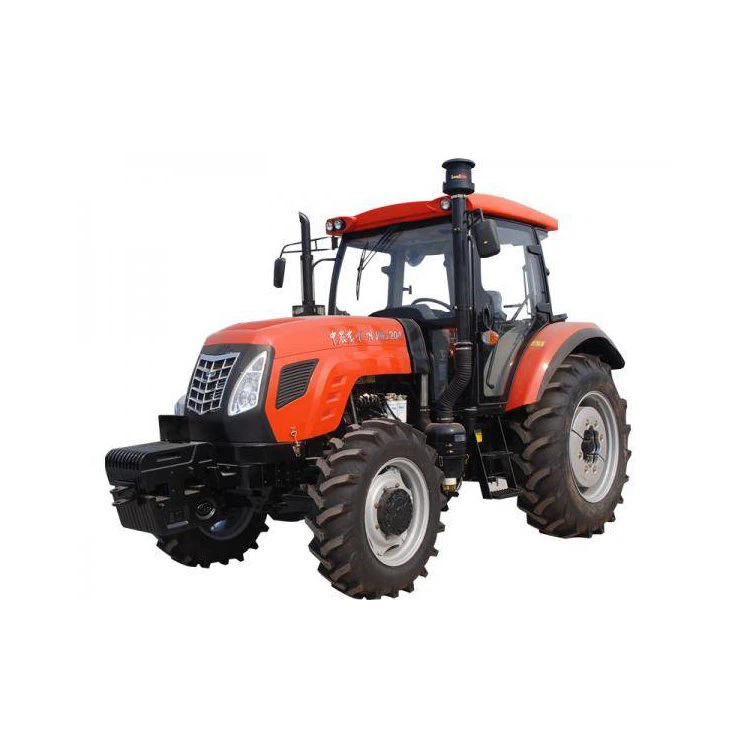

1204 High-horsepower Agriculture Tractor
Engine: Equipped with domestic famous and excellent engine, large torque reserve;
Clutch: Dual-action clutch, imported friction plate, large spline, improve the service life and reliability of the clutch;
Description
Machine key feature of 1204 tractor:
Engine: Equipped with domestic famous and excellent engine, large torque reserve;
Clutch: Dual-action clutch, imported friction plate, large spline, improve the service life and reliability of the clutch;
Gearbox: Equipped with new upgraded and strengthened gearbox, synchronizer shuttle shift, more smooth shift, reasonable gear position, can be configured crawling gear, speed matching is more reasonable; Both sides strengthen the plate, improve the reliability of the chassis;
Performance: Excellent performance, advanced structure, fully enclosed cab, high-grade adjustable seat, adjustable Angle steering wheel, suitable for different people to operate, make the operation more comfortable.
1204 tractor technical parameter:
|
Item |
Unit |
Parameter |
|
Model |
/ |
1204 tractor |
|
Type |
/ |
Wheeled tractor, 4WD |
|
Function |
/ |
Farm use |
|
Overall dimension(L*W*H) |
mm |
5060*2105*2820 |
|
Wheelbase |
mm |
2530 |
|
Wheel Tread(Front/Rear) |
mm |
1650-2285/1620/2420 |
|
Wheel Tread(Front/Rear)adjust mode |
/ |
Stepwise adjustable/stepless adjustable |
|
Min.Ground Clearance |
mm |
415(Central front axle) |
|
Operating weight |
kg |
4499 |
|
Gear |
/ |
16F+8R |
|
PTO Power |
kw |
71.5 |
|
Max. Traction Force |
kn |
28 |
|
Engine |
/ |
YTO/WEICHAI |
Product Description:
1204 tractor is a four-wheel drive wheeled tractor with international advanced level developed by China domestic famous enterprise on the basis of introducing tractor manufacturing technology from abroad and according to the market demand. Its powerful power, excellent performance, beautiful shape, wide vision, strong adaptability, widely used in all kinds of farm work and transportation and other field.
Compared with the domestic similar models, according to the ergonomics design concept, developed a humanized whole flat floor, combined with side displacement, so that the operation space is enlarged, the space utilization rate is improved, the operation is comfortable, light, reduce the driving personnel's work intensity.
Considering the different needs of users, the structure of power output and adjustable towing device is optimized, so that the power output and towing device can be used at the same time without interfering with each other, and the connection is simple and saves time and effort.
