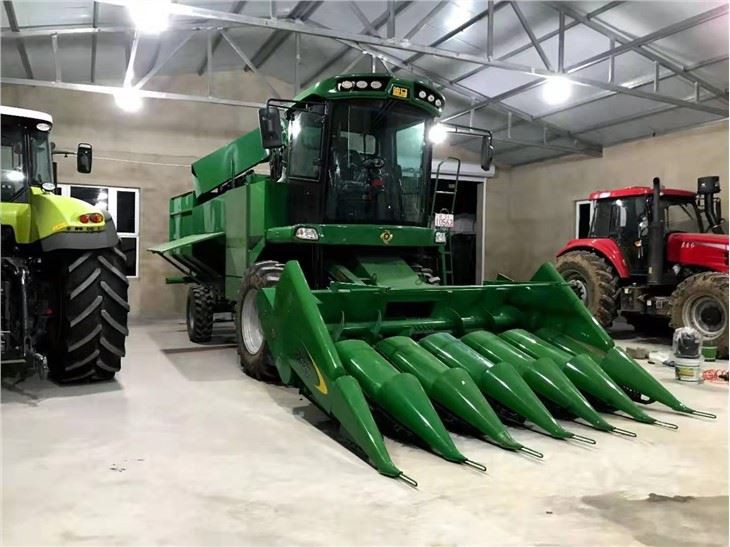

Corn Cob Harvester
1. Matched with 190hp engine, more powerful;
2.The machine layout is reasonable, the structure is mature, the reliability is high;
3.the harvest efficiency is high, the standard land can reach 8-15 mu/hour;
4.The bearings and hydraulic parts of the important parts are imported, and the reliability is greatly improved.
Description
| Model | 4YZ-6A corn harvester (corn ear type) | |||
| Overview of vehicle configuration features | 1. Six row cutting head (600 row spacing, improved model), Yuchai 190 horsepower (National 4 main engine, emission Ⅲ ) engine; 2. Plate type ear picking platform, swinging knife type (two pieces) chopper (3500); 3. Crater 1000 series hydraulic bridge; 4. Full rubber peeling machine, luxurious cab; 5. High discharge grain tank, equipped with grain lifting recycling box. | |||
| Basic configuration technical parameters and forms | engine | Manufacture | Yuchai | |
| rated power (kW/HP) | 140/190 | |||
| rated speed(r/min) | 2200 | |||
| drive axle | Supplier and Model | Crater 1000 series hydraulic bridge | ||
| The table for picking corn ears | type | Plate type (wrong knife type) | ||
| Counters-field | type | swinging knife type (two pieces) | ||
| grain tank | type | Rollover | ||
| tyre | Drive tire specification | 18.4-30 | ||
| Steering tire specification | 12-18 | |||
| stripping machine | type | Jotec full rubber peeling machine Fish scale roll + screw roll | ||
| Number of peeling rolls | 20 | |||
| Number of star axles | 5 | |||
| Machine parameter | Overall dimension (L*W*H)（mm） | 9750×3850×3750 | machine quality(kg) | 10440 |
| Number of working rows (rows) | 6 | Applicable line spacing range(mm) | 600 | |
| working width （mm） | 3650 | traveling speed （km/h） | 0-22 | |
| Drive wheel pitch（mm） | 1860 | Steering wheel track（mm） | 2000 | |
| Minimum left turn through radius（mm） | 8000 | Minimum right turn through radius（mm） | 8000 | |
| Minimum left turn through radius（mm） | 360 | Ear box capacity（m³） | 4.1 | |
| Wheelbase of front and rear wheels（mm） | 3657 | Maximum unloading height（mm） | 2850 | |
| Working width of pulverizer（mm） | 3500 | Hourly productivity（ha/h） | 0.45-1.14 | |
