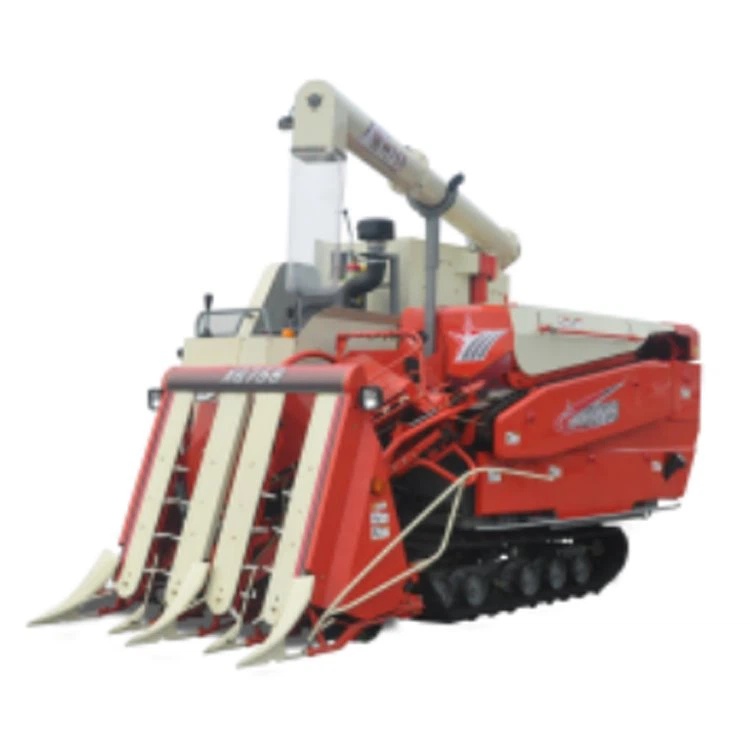

Semi Feeding Rice Harvester
1. Equipped with 75 horsepower famous brand engine and large displacement HST (42ml/ R), powerful power, reliable quality.
2. The walking system can be equipped with 450mm widened track, the machine wet rotten field through stronger.
Description
4LBZ-145 semi-feeding combine harvester key features:
1. Equipped with 75 horsepower famous brand engine and large displacement HST (42ml/ R), powerful power, reliable quality.
2. The walking system can be equipped with 450mm widened track, the machine wet rotten field through stronger.
3. Cutting platform picking chain configuration three speed change, more suitable for the harvest of lodging crops.
4. Efficient threshing system, better cleaning effect.
5. High-capacity high-speed grain unloading device with high position and large Angle rotating horizontally, making grain unloading faster.
6. Accessories versatility, low cost.
4LBZ-145 semi-feeding combine harvester technical parameter:
Item | Unit | Specification | |
Model | / | 4LBZ-145 semi-feeding combine harvester | |
Structure type | / | Crawler self - propelled semi - feed | |
Matched engine | Structure type | / | Inline, water cooled, four stroke, direct injection, pressurized and intermediate cooled |
Cylinder No. | cylinder | 4 | |
Rated power | kW | 55 | |
Rated speed | r/min | 2400 | |
Overall dimension during working status (L×W×H) | mm | 4330×1960×2540 | |
Operating weight | kg | 2900 | |
Min. Ground clearance | mm | 220 | |
Ground pressure of track | kPa | 23.4 | |
Working speed | km/h | 0～5.4 | |
Work hour productivity | hm2/h | 0.27～0.43 | |
Fuel consumption per unit volume of operation | kg/hm² | ≤28 | |
Rows | row | 4 | |
Cutter type | / | Ⅵ type | |
Threshing roller | Type | / | Bow tooth type |
Dimension(OD×length) | mm | φ424×900 | |
Concave screen type | / | Grid type | |
Fan | Type | / | Centrifugal type |
Diameter | mm | φ370/φ240 | |
Qty | pc | 2 | |
Track | Section×number×width | / | 90×48×400（Optional 90×48×450） |
Gauge | mm | 1030 | |
Working gear | / | Low speed, standard gear | |
Gearshift method | / | Mechanical variable speed + hydraulic variable speed(HST) | |
Stem shredder type | / | Suspension type | |
Unloading type | / | Single direction grain unloading/multi-direction grain unloading | |
