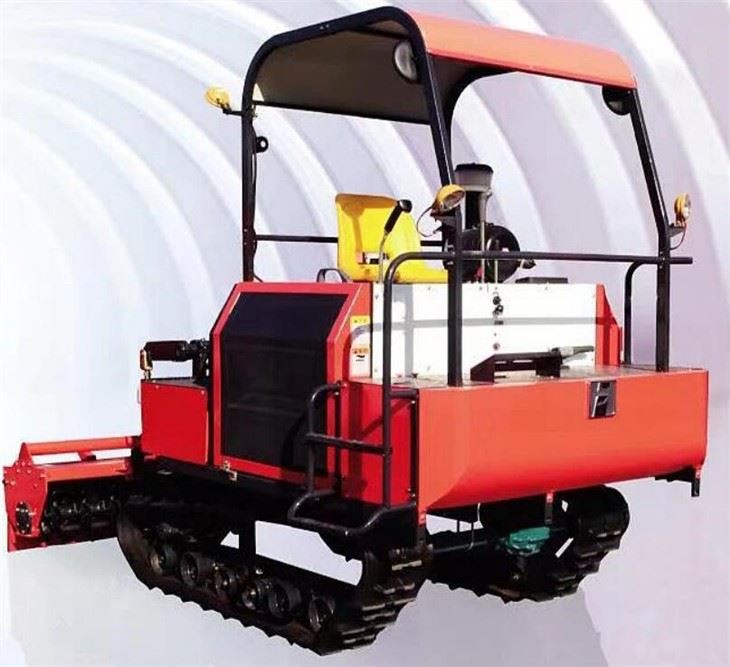

Self-propelled Crawler Rotary Tiller

Description

Self-propelled Crawler Rotary Tiller
Specification model		/	1GLZ-200B	1GLZ-200C	1GLZ-230A
Dimensions (LxWxH)		mm	3580×2200×2600	3580×2200×2600	3580×2470×2600
Machine weight		kg	1985	1985	2030
Working productivity		hm²/h	0.2 ~ 0.33	0.2 ~ 0.33	0.3 ~ 0.5
Rail distance		mm	1200	1050	1200
Crawler specification (Pitch×Width×Section)		/	90mm×350(400)mm×51	90mm×350(400)mm×51	90mm×350(400)mm×51
PTO speed		r/min	580	580	580
Matching engine	Engine Model	/	Diesel	Diesel	Diesel
	Rated power	kW	73	73	73
	Rated speed	r/min	2600	2600	2600
Rotary part	Width	mm	2000	2000	2300
	Tillage depth	mm	Dry -field: 80-160 Paddy field: 100-180	Dry -field: 80-160 Paddy field: 100-180	Dry -field: 80-160 Paddy field: 100-180
	Number of Rotary Blade	PCS	94 (Left & right 47 each)	94 (Left & right 47 each)	106 (Left & right 53 each)
	Rotary blade type	/	IT195 series	IT195 series	IT195 series
	Blade shaft speed	r/min	280	280	280
Product features： -Domestic famous turbocharged engine, high horsepower, low fuel consumption, sufficient power reserve, easier operation. -Cloud table operating panel, the vision is more open, more convenient to monitor the field situation and operation effect. -Adopting hydraulic control system and hydraulic stepless transmission device, which makes the operation of walking and steering smoother and more comfortable. -One lever control, the rotating part of the tiller is raised and lowered, and the left and right steering of the machine is completed with one lever. -Adopting 90mmx51 sectionsx350 (400) mm crawler, with small soil pressure, more beneficial to paddy field operation. -Water, dry dual-use rotary tillage harrow, reduce the purchase cost, enhance the use rate of the machine, increase earnings -Adopting 4 groups of asymmetric rotary blades, which can greatly enhance the effect of primary rotary tillage and improve operation efficiency. -Optional automatic balance lifting system to improve the operation efficiency and ground smoothness. -Optional fertilizer applicator, which can improve the integration of the machine, reduce the operation steps, improve the work efficiency and reduce the production cost. -Optional grain transporting, monopoly and ditching equipment can be used to achieve multi-purpose.
