Dry Land Walking Tractor
1. Large power, large cylinder diameter, fuel saving, good starting performance, to meet the needs of high-power users;
2. Different agricultural machinery and tools can be equipped to achieve a multi-purpose machine use and solve the cost;
Description
15HP walking tractor main feature:
1. Large power, large cylinder diameter, fuel saving, good starting performance, to meet the needs of high-power users;
2. Different agricultural machinery and tools can be equipped to achieve a multi-purpose machine use and solve the cost;
3. Easy to operate and maintenance.
15HP walking tractor technical parameter:
Model | 15HP walking tractor | |||
Engine parameter | Engine model | ZS1100 | ||
Engine Type | Single, horizontal, water cooled, four stroke | |||
Combustion System | direct injection | |||
Cooling way | condensations | |||
Power | 1 hour | 12.13kw/16.5hp | ||
12 hour | 11.03kw/15hp | |||
Overall Dimensions(LxWxH) | 2680×960×1250mm | |||
Min. Ground Distance | 185mm | |||
Wheel Tread | 580-600mm | |||
Braking type | Cricoids, inside expansion | |||
Clutch type | Dual plates and constant combined with friction type | |||
Steering gear type | Meshing sleeve | |||
Operation Weight | 350kg | |||
Tire Model | 6.00-12 | |||
Tire Pressure | Field Work | 80~200(0.8~2.0kgf/cm2) | ||
Transportation Work | 140~200(1.4~2.0kgf/cm2 ) | |||
Triangle belt | 4pcs B1880 | |||
15HP walking tractor description:
The 15HP walking tractor is widely used in irrigated and upland fields in plain, mountainous and hilly areas. It can be used for rotary tillage, sowing, harvesting, weeding, backfilling, furrowing, ridging, mulching, grape burying and other functions with corresponding agricultural machinery and tools. Walking tractor has the advantages of light weight, compact model, flexible operation and strong adaptability. It can also be used for short distance transportation.
The walking tractor has the characteristics of large power, small volume, light weight, easy to start, low oil consumption, good reliability, convenient operation and maintenance, wide use, etc.
Walking tractor can be driven by the power of the internal combustion engine through the transmission system, the driving wheel to obtain the driving torque and then through the tire pattern and tire surface to the ground small, backward horizontal force, the reaction force is to promote the driving force of the tractor forward. Simple structure, small power, suitable for small farmland. By the driver holding the handrail to control the control mechanism, traction or drive supporting agricultural tools for operation.
Matched implements:
![]() | ![]() | |

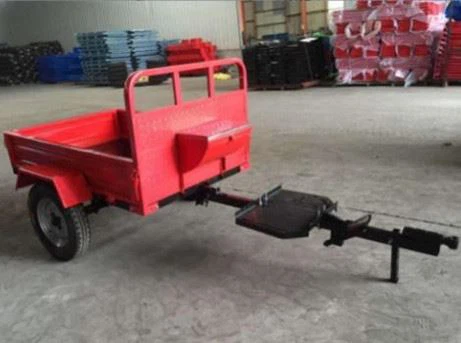

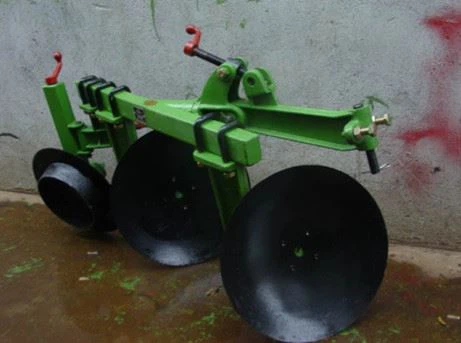

| Disc Plough | Trailer | |
![]() | ![]() | |

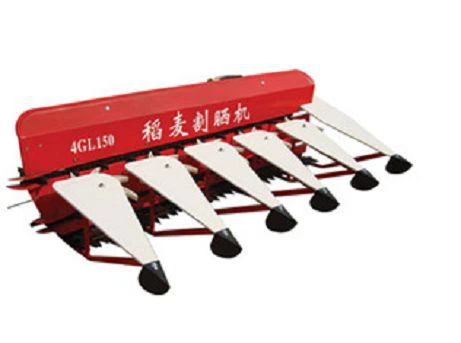

| Corn planter | Reaper | |
![]() | ![]() | |

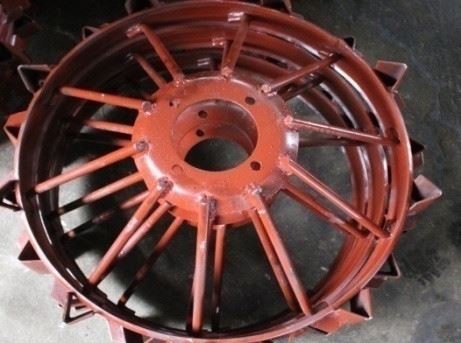

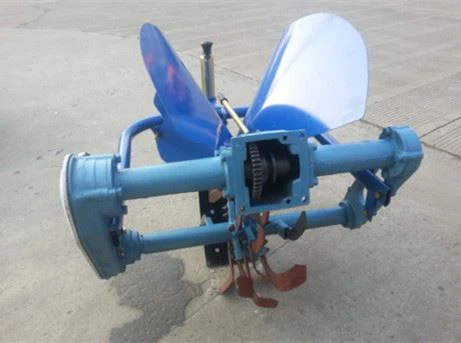

| Paddy tyre | Cultivator | |
![]() | ![]() | |

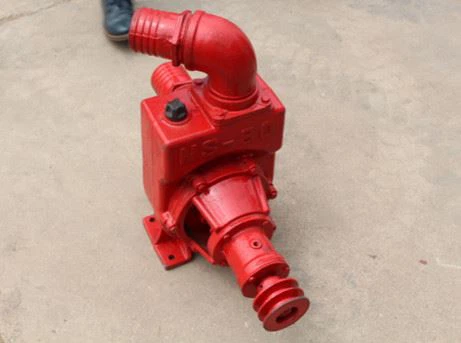

| Ditching | Water pump | |
