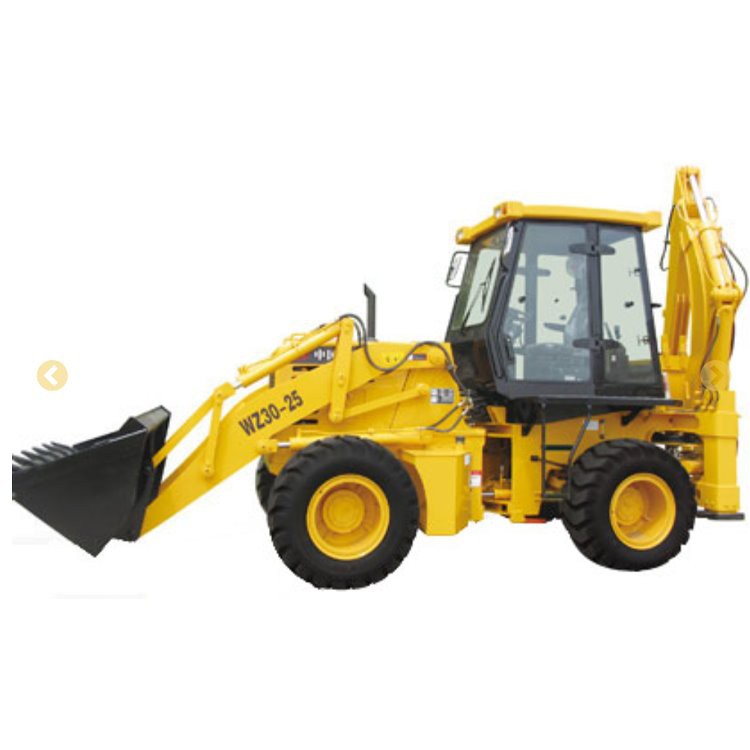

Backhoe Loader
Overall Operating Weight: 7640KG
Final Reducer: Single Stage Final Reducer
Transport Dimension(L*W*H): 5910x2268x3760
Rated Loader of Axle: 7.5t
Description
Backhoe loader Technical Parameters
Overall Operating Weight | 7640KG | Final Reducer | Single Stage Final Reducer |
Transport Dimension(L*W*H) | 5910x2268x3760 | Rated Loader of Axle | 7.5t |
| Transmission System | |||
Wheel Base | 2250mm | Torque Converter | |
Min.Ground Clearance | 300mm | Model | YJ280 |
Bucket Capacity | 1.0m3 | Type | Single-stage Three Elements |
Breakout Force | 38KN | Max. Efficiency | 84.40% |
Loading Lifting Capacity | 2500KG | Inlet Pressure | 0.4Mpa-0.55Mpa |
Bucket Dumping Height | 2742mm | Outlet Pressure | 1.2Mpa-1.5Mpa |
Bucket Dumping Distance | 1062mm | Cooling Method | Oil-cooling Pressure Circulation |
Digging Depth | 52mm | Gearbox | |
Backhoe Capacity | 0.3m3 | Type | Fixed Shaft Power Transmission |
Max. Digging Depth | 4082mm | Oil Pressure of Clutch | 1373Kpa-1569Kpa |
Swing Angle of Excavator Grab | 190° | Gears | Two Gears Ahead, Two Gears Astern |
Max. Pulling Force | 39KN | Max. Speed | 22Km/h |
Engine | Tyre | ||
Model | YTR4108G60-1 | Model | 16/70-20 |
Type | In Direct injection Four-Stroke and Injection Combustion Chamber | Pressure of Front wheel | 0.22Mpa |
| Pressure of Rear Wheel | 0.22Mpa | ||
Cylinder-Inside Diameter*Stroke | 4-108x120 | Brake System | |
Rated Power | 55kW | Service Brake | Air over oil Caliper Brake |
Rated Speed | 2400r/min | External Type | |
Min. Fuel Consumption | <216g/km.h | Self-regulation | |
Max. Torque | >261.7N.M/1800r/min | Self-balance | |
Displacement | 4.4L | Emergency Brake | Operation Power Implementing brake |
Steering System | Manual Operation Power Terminating Brake | ||
Model of Steering Device | BZZ5-250 | Hydraulic System | |
Steering Angle | ±36° | Digging Power of Excavator Grab | 46.5KN |
Min.Turning Radius | 5018mm | Digging Power of Dipper | 31 KN |
Pressure of the System | 12Mpa | Bucket Lifting Time | 5.4S |
Axle | Bucket Lowering Time | 3.1S | |
Manufacturer | Fei cheng Axle Factory | Bucket Discharge Time | 2.OS |
Main Transmission Type | Double Reduction | The parameters are subject to change without notice. | |
