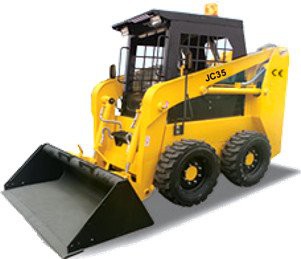

Skid Steer Loader

Max. Speed (kin/h)

10

Tire ( track ) model

8.5-15

Loading Capacity (kg)

500

Lifting

Arc-Shaped Lifting

Bucket capacity(m³)

0.25

Rated flow(L/min)

40

High Flow(L/min)

tank capacity(L)

50

Weight with bucket(kg)

2200

B

Hinge Pin Height (mm)

2725

C

Total Height (mm)

2000

D

Height to bottom of bucket(mm)

2558

E

Overall length without bucket ( mm )

2300

F

Overall length with bucket(mm)

2950

G

Dumping angle at maximum height(°)

40

H

Dumping height(mm)

2050

I

Dumping reach(mm)

790

J

Rollback at ground position(°)

30

K

Rollback fully raised at max height(°)

104

L

Wheelbase(mm)

897

M

Ground clearance(mm)

140

N

Angle of departure(° )

20

O

Front turning radius without bucket mm

1098

P

Front tuning radius(mm)

1760

Q

Rear tuning radius(mm)

1296

R

Rear length (mm)

964

S

Track width(mm)

1080

T

Width (mm)

1350

U

Bucket width (mm)

1400
