Grain Steel Silo

Model: TCK04503
Number of plies: 3
Volume: 63
Bulk density(ton):47

Description

Grain steel silo technical parameter:

Item	Technical parameters table of flat-bottomed steel silo (30° silo top, effective width of coaming 1.12m)
Diameter	Model	Number of plies	Volume	Bulk density(ton)	Height of silo(m)	Full height(m)
4.584	TCK04503	3	63	47	3.43	4.78
TCK04504	4	82	61	4.55	5.9
TCK04505	5	100	75	5.67	7.02
TCK04506	6	119	89	6.79	8.14
TCK04507	7	137	103	7.91	9.26
TCK04508	8	156	117	9.03	10.38
TCK04509	9	174	131	10.15	11.5
TCK04510	10	193	144	11.27	12.62
5.500	TCK05504	4	120	90	4.55	6.17
TCK05505	5	147	110	5.67	7.29
TCK05506	6	173	130	6.79	8.41
TCK05507	7	200	150	7.91	9.53
TCK05508	8	227	170	9.03	10.65
TCK05509	9	253	190	10.15	11.77
TCK05510	10	280	210	11.27	12.89
TCK05511	11	306	230	12.39	14.01
6.417	TCK06405	5	203	152	5.67	7.55
TCK06406	6	239	179	6.79	8.67
TCK06407	7	275	206	7.91	9.79
TCK06408	8	312	234	9.03	10.91
TCK06409	9	348	261	10.15	12.03
TCK06410	10	384	288	11.27	13.15
TCK06411	11	420	315	12.39	14.27
TCK06412	12	456	342	13.51	15.39
7.334	TCK07306	6	316	237	6.79	8.94
TCK07307	7	363	272	7.91	10.06
TCK07308	8	411	308	9.03	11.18
TCK07309	9	458	343	10.15	12.30
TCK07310	10	505	379	11.27	13.42
TCK07311	11	553	414	12.39	14.54
TCK07312	12	600	450	13.51	15.66
TCK07313	13	647	485	14.63	16.78
8.250	TCK08207	7	465	349	7.91	10.32
TCK08208	8	525	393	9.03	11.44
TCK08209	9	585	438	10.15	12.56
TCK08210	10	644	483	11.27	13.68
TCK08211	11	704	528	12.39	14.80
TCK08212	12	764	573	13.51	15.92
TCK08213	13	824	618	14.63	17.04
TCK08214	14	884	663	15.75	18.16
Item	Technical parameters table of flat-bottomed steel silo (30° silo top, effective width of coaming 1.12m)
Diameter	Model	Number of plies	Volume	Bulk density(ton)	Height of silo(m)	Full height(m)
9.167	TCK09107	7	580	435	7.91	10.59
TCK09108	8	654	490	9.03	11.71
TCK09109	9	728	546	10.15	12.83
TCK09110	10	802	601	11.27	13.95
TCK09111	11	876	657	12.39	15.07
TCK09112	12	949	712	13.51	16.19
TCK09113	13	1023	767	14.63	17.31
TCK09114	14	1097	823	15.75	18.43
10.084	TCK10008	8	798	599	9.03	11.97
TCK10009	9	888	666	10.15	13.09
TCK10010	10	977	733	11.27	14.21
TCK10011	11	1067	800	12.39	15.33
TCK10012	12	1156	867	13.51	16.45
TCK10013	13	1245	934	14.63	17.57
TCK10014	14	1335	1001	15.75	18.69
TCK10015	15	1424	1068	16.87	19.81

Hot Tags: grain steel silo, China, suppliers, manufacturers, customized, cheap, quotation, low price, for sale, Salt Production And Agricultural Machinery Solutions, Tractor Front End Loader, Tractor Traction Sprayer, Grain Binder, Swing Around Linear Equipment, Potato Machinery And Equipment

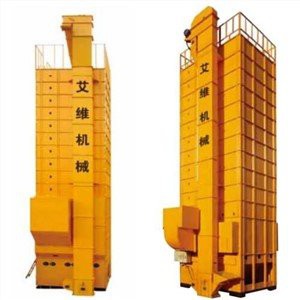

Bath Circulation Dryer
