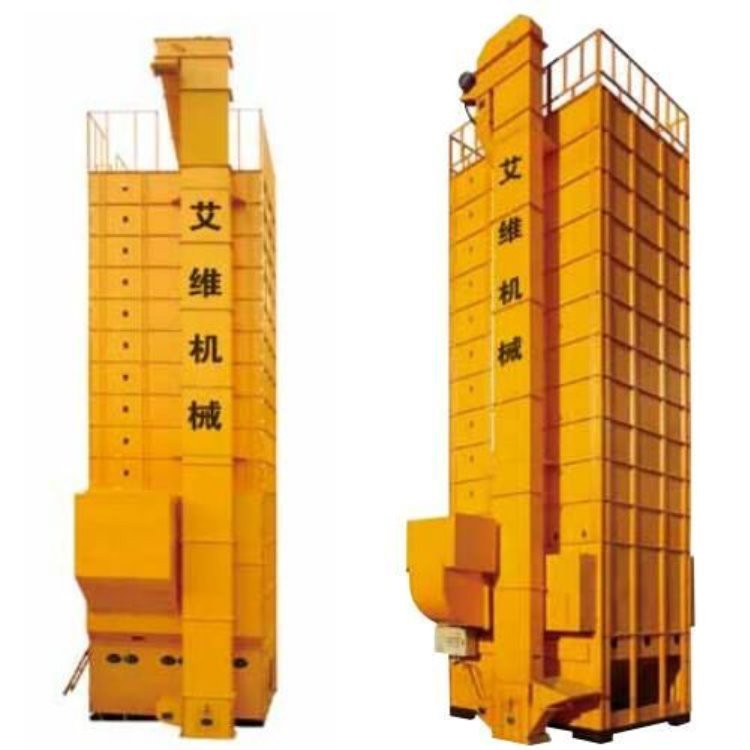

Bath Circulation Dryer
1. Adopted mixed flow structure, hot air uniform, fast drying speed;
2. The grain quality is high and the moisture is uniform after drying;
3. Large ventilation area, low energy consumption under the same conditions;
Description
Batch type circulation dryer feature：
1. Adopted mixed flow structure, hot air uniform, fast drying speed;
2. The grain quality is high and the moisture is uniform after drying;
3. Large ventilation area, low energy consumption under the same conditions;
4. It can be equipped with "zero crushing" type lifter to reduce the cycle crushing rate of the whole machine to below 0.2%. It is suitable for drying high-moisture corn and seeds.
5, high degree of automation (hot air, grain temperature, water online automatic monitoring, with automatic fault alarm, automatic cycle of grain, discharging, system automatic shutdown).
Batch type circulation dryer technical Parameter:
Item | Unit | Designed value |
Model | / | 5HP-30X |
Drying method (direct/indirect heating) | / | indirect heating |
Dimensions of dryer body | mm | 4930×4115×13500 |
Batch processing | t | 30 |
The drying rate | %/h | 0.6~1.2 |
Number of dry sections/height of each section | pc/mm | 3/885 |
The installed capacity | m³ | 55 |
Height of retarded section | mm | 4905 |
Hot air temperature range | ℃ | 60～90 |
Number of hot air fans | Pc | 2 |
Type of hot air fan | / | 4-72-6.3A |
Rotary speed of hot fan | r/min | 1440 |
Full pressure of hot fan | Pa | 1062～1371 |
Flow rate of hot fan | m³/h | 11121～17391 |
Motor power of hot fan | kW | 7.5×2units |
Model of hot blast stove | / | ZYS-90 |
Grate form | / | Fixed type |
Form of heat exchanger | / | Tubular type |
Thermal power of hot blast stove | kJ/h | 3.768×106 |
Hot blast stove fuel type | / | Environmental protection heat source |
Grain discharge motor power | kW | 0.75 |
Hoist productivity | t/h | 30 |
Hoist motor power | kW | 3 |
